kencloud
Q: How do you get the 4 channels on the side of the R9mm. To work?
Asked by kencloud on 2019-02-21 08:39:47
Samchan The four feet on the side are the ch1-ch4 control signals. You only need to connect the signal pins of the servos to the four legs on the side. The red and black wires on the servos are connected to the power distribution board to take power.
2019-02-26 03:16:22 Helpful (0)

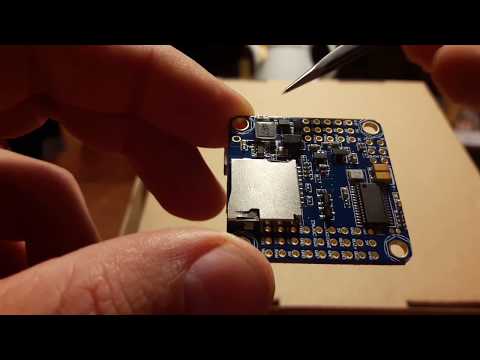

kencloud FOR LilDeb… BetaFlight Target OMNIBUSF4V3 https://github.com/iNavFlight/inav/blob/master/docs/Board - Omnibus F4.md
